Picatinny rail consists of slots with 5.23 mm spaces between one another, which means that it can be used across its entire length. It is simple to mount and interchangeable – if something is made for a Picatinny rail, it will fit regardless of the manufacturer or manufacturing date. It is affordable, resilient and reliable – this is why it so commonly used by professionals and military. Because of all its great qualities, Picatinny rail has been dominating the rail market in the recent years.
Picatinny is a big step forward from the Weaver standard. Weaver has a few predesignated slots while Picatinny has slots all over its surface, allowing the device to be mounted wherever the user finds it fitting. Weaver's slot is 3.8 mm wide, which is why ring mounts made for a Weaver rail will also fit on a Picatinny rail while ring mounts made specifically for a Picatinny rail will not fit on a Weaver rail. This is one of the main reasons why Picatinny is a far better mounting solution.

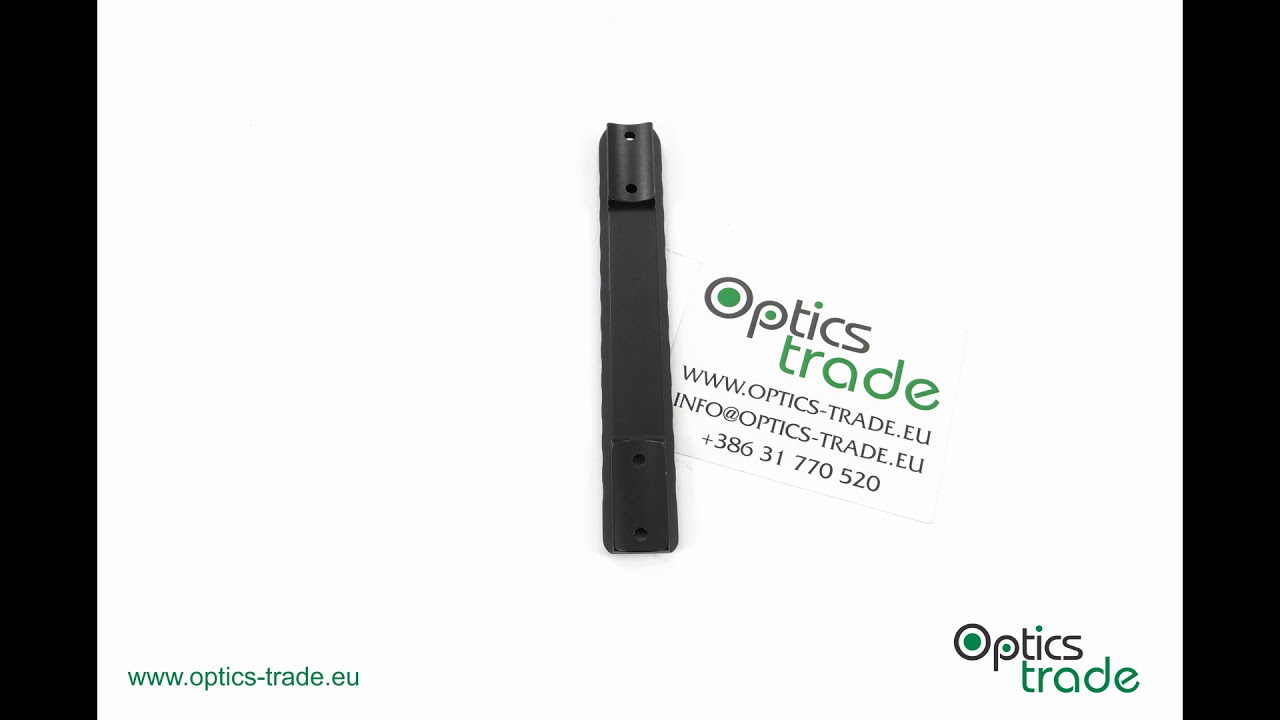

Recknagel is currently the biggest manufacturer of mounts in Germany. Their Picatinny rails, known for great fit and finish, are mostly made of high-grade aluminum (a few are also made of steel), which is why they are very reliable. Screws are included. Currently, a common trend among rifle manufacturers is making receivers out of aluminum – mounting a Picatinny rail made of aluminum on one of those receivers is thus not problematic. Their products are marketed either under the name Recknagel or Era-Tac.
Sauer & Sohn was founded in 1751 in Germany. It is the second oldest manufacturer of firearms in the world. One of their most known firearms is Sauer 38H, an advanced semiautomatic pistol that was produced in great numbers – it featured a cocking/decocking lever. They partnered with Swiss company SIG in 1976 – a new line of semi-automatic pistols was launched, branded SIG Sauer.
Sauer 202 Medium, also known as Sauer 202 Standard, is a bolt-action rifle that is chambered for the following calibers: .22-250 Rem., .243 Win., .25-06 Rem., 6,5x55, 6,5x57, .270 Win., 7x64, .308 Win., .30-06, 8x57IS and 9.3x62. Its magazine has 3 rounds. Possible barrel lengths: 510, 560 and 600 mm. There are four holes drilled on Sauer 202's action for mounting purposes, two at the front and two at the rear. The ejection port is located on the right side of the rifle. Bolt runs smoothly and operates silently. The buyer can choose to have the receiver manufactured from aluminum or steel.
Sauer 202 Medium (Standard) has a similar action as Sauer 202 Magnum. The radiuses of the mounting surfaces are the same but there is a difference in B distance (see the picture below). This is why two-piece mounts made for Sauer 202 Medium will fit Sauer 202 Magnum while one-piece mounts made for Sauer 202 Medium will not fit Sauer 202 Magnum.
Sauer 202 Medium (Standard) and Sauer 200 have an action of same dimensions, which is why they share the same mounts.
A: 21.84 mm
B: 94.2 mm
C: 21.84 mm
BHU: 1.5 mm
Fi: 6-48
R1: R17.4
R2: R17.4
Remove all the stains (grease, oil etc.) from the rifle's receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Make sure that the Picatinny rail is compatible with the rifle by inspecting the mounting holes on both. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws and contact surfaces. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 2.2 Nm) – do not overtighten.
The product has a warranty period of 10 years.
