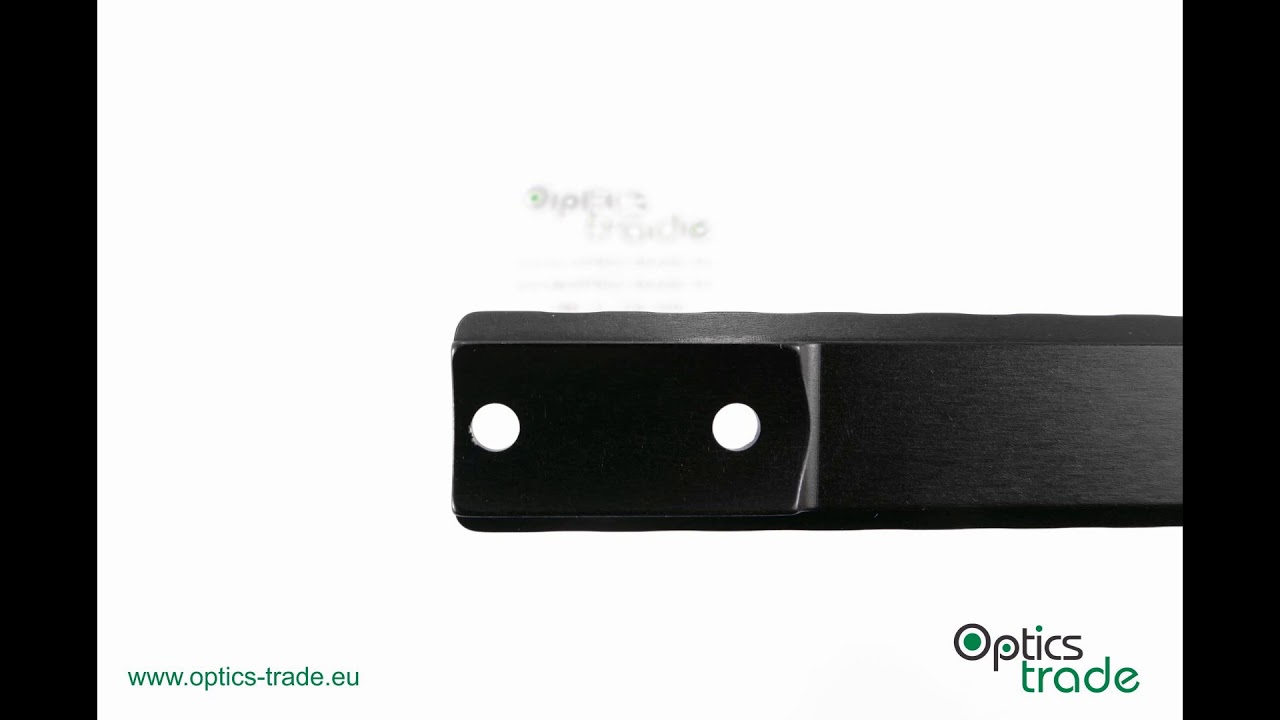

ERA-TAC picatinny rail - Savage rounded top, short (model 10)

Introduction

Picatinny rail consists of slots with 5.23 mm spaces between one another, which means that it can be used across its entire length. It is simple to mount and interchangeable – if something is made for a Picatinny rail, it will fit regardless of the manufacturer or manufacturing date. It is affordable, resilient and reliable – this is why it so commonly used by professionals and military. Because of all its great qualities, Picatinny rail has been dominating the rail market in the recent years.

Picatinny is a big step forward from the Weaver standard. Weaver has a few predesignated slots while Picatinny has slots all over its surface, allowing the device to be mounted wherever the user finds it fitting. Weaver's slot is 3.8 mm wide, which is why ring mounts made for a Weaver rail will also fit on a Picatinny rail while ring mounts made specifically for a Picatinny rail will not fit on a Weaver rail. This is one of the main reasons why Picatinny is a far better mounting solution.

Recknagel is currently the biggest manufacturer of mounts in Germany. Their Picatinny rails, known for great fit and finish, are mostly made of high-grade aluminum (a few are also made of steel), which is why they are very reliable. Screws are included. Currently, a common trend among rifle manufacturers is making receivers out of aluminum – mounting a Picatinny rail made of aluminum on one of those receivers is thus not problematic. Their products are marketed either under the name Recknagel or Era-Tac.

About the rifle

Savage Arms is a firearms manufacturing company from Westfield, Massachusetts. It was founded in 1894 by Arthur Savage in Utica, New York. In the beginning, the company manufactured rifles, handguns, and ammunition. During World War 2, Savage Arms turned to military production – they produced the famous submachine gun Thompson and Lee-Enfield, a bolt-action rifle. They are also known for their unique trigger „Accutrigger“, Model 99 hammerless lever-action rifle and .300 Savage sporting cartridge.

In 1998, Savage wanted a clearer differentiation between short-action and long-action models – they named the short-action models “Model 10” while the long-action models retained number 110. In 2003, Savage introduced Accutrigger for this series of firearms – this trigger gives the user a possibility to set the trigger pull to his or her own preferences.

Savage model 10 can be chambered for .308 Win., 6.5 Creedmoor, and 6mm Creedmoor. Number “10” means that it features a short action – long action is marked with number 110. There are quite a few variations to choose from – some of them feature Accutriger which allows the user to set the trigger pull to his or her own preferences without having to go to a gunsmith. There are two mounting holes on each of the two surfaces.

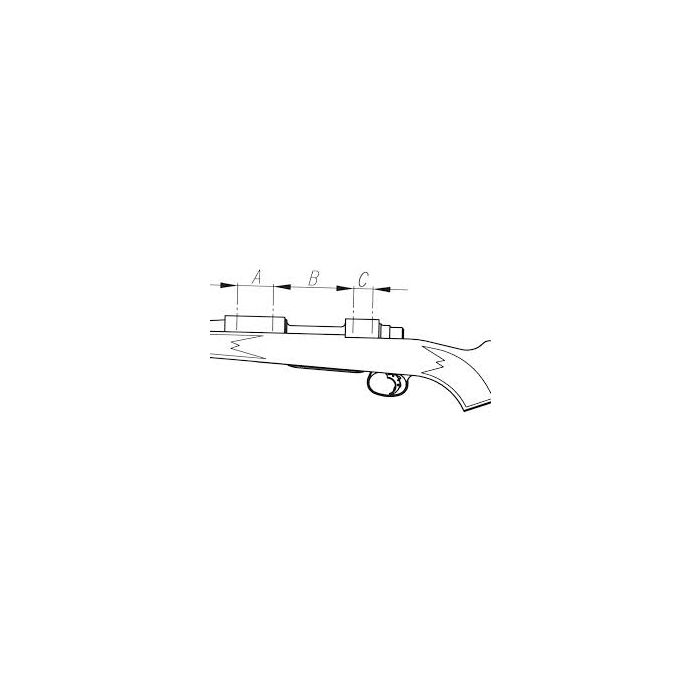

Rifles Savage 110 (long action) and 10 (short action) have similar actions. The radiuses of the mounting surfaces are the same but there is a difference in B distance (see the picture below). This is why two-piece mounts made for Savage 110 will fit Savage 10 while one-piece mounts made for Savage 110 will not fit Savage 10.

Rifles Savage Mod. 10 can either have a round or a flat rear mounting surface. That depends on when the rifle was manufactured – the older rifles have a flat rear part (flat top) of the receiver while the new ones have a round rear part (round top). Based on that, an appropriate mount has to be chosen.

This mount is suitable for newer Savage Mod. 10 models with round rear mounting surface.

A: 22 mm
B: 100 mm
C: 22 mm
BHU: 0 mm
Fi: 6-48
R1:
R2:

Mounting instructions

Remove all the stains (grease, oil etc.) from the rifle's receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Make sure that the Picatinny rail is compatible with the rifle by inspecting the mounting holes on both. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws and contact surfaces. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 2.2 Nm) – do not overtighten.

Warranty

The product has a warranty period of 10 years.
